Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth
Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth

Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth

جزئیات محصول:
محل منبع: چین (سرزمین اصلی)
نام تجاری: YT
گواهی: ISO9001
شماره مدل: EC360
پرداخت:
مقدار حداقل تعداد سفارش: 1 عدد
قیمت: negotiable
جزئیات بسته بندی: بسته بندی صادراتی استاندارد
زمان تحویل: 7-30 روز
شرایط پرداخت: L/C ، T/T
قابلیت ارائه: 10000 قطعه در ماه
اکنون تماس بگیرید

اطلاعات تکمیلی
مدل شماره.: EC360 گواهی: ISO9001
نام محصول: چرخ بیکار یا بیکار پایان: صاف
عمق سختی: 8-12 میلی متر منشاء: چین
فرآیند: جعل/ریخته گری مادی: ۴۰ سیمان
برجسته کردن:

HRC48-58 Hardness Front Idler Assembly,8-12mm Hardness Depth Front Idler Assembly,40SiMnti Material Front Idler Assembly

,

8-12mm Hardness Depth Front Idler Assembly

,

40SiMnti Material Front Idler Assembly

توضیحات محصول

Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly
What is an Idler?
The CHT idler integrates advanced design and precision manufacturing to deliver unmatched durability and safety. Its keyed joint between idler and axle expands the bearing surface and enhances torque transmission, boosting reliability while aligning the idler's service life with other undercarriage components to eliminate uneven wear. The axle's rotation within fixed bearings significantly reduces friction and wear, extending the track system's longevity.
Crafted via either alkali phenolic resin sand casting or sodium silicate-bonded sand casting, it undergoes specialized heat treatment to achieve a minimum surface hardness of HRC48-58 and a 4-6mm hardened layer (HRC45), providing exceptional impact and wear resistance in harsh mining or construction settings. Final precision refinement on a CK5110 large-scale CNC vertical lathe ensures impeccable dimensional accuracy and superior surface finishes.
Idler Characteristics
Tech-Driven Durability: Built to Outlast
50% reduced bearing pressure cuts bearing load drastically, extending component life by 2x or more. The splined idler-shaft connection secures reliability while aligning the idler's lifespan with other critical undercarriage parts. The heavy-duty rock guard serves as a tough barrier against dirt, rubble, and debris.
Efficiency-Focused Design: Minimize Downtime, Maximize Output
Detachable bearing blocks with bushings allow removal and servicing without disassembling the track, trimming maintenance time by up to 40%. Dedicated lubrication injectors deliver precise lubrication to high-wear surfaces, preventing friction-related failures. An expanded bearing surface with optimized oil flow enhances track stability and responsiveness in rough conditions.
Cost-Smart Engineering: Lower TCO, Higher Returns
These combined advantages prolong the track system's service life, reducing overall operational costs by lessening downtime and the frequency of part replacements.

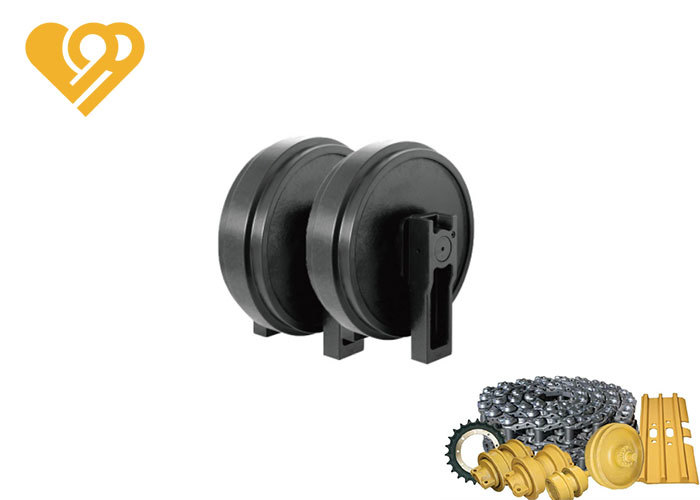

Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth 0
Design/Structure/Main Dimensions of Installation

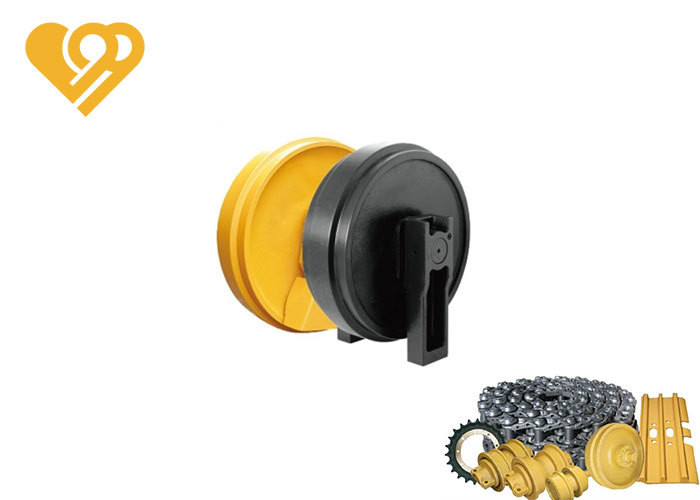

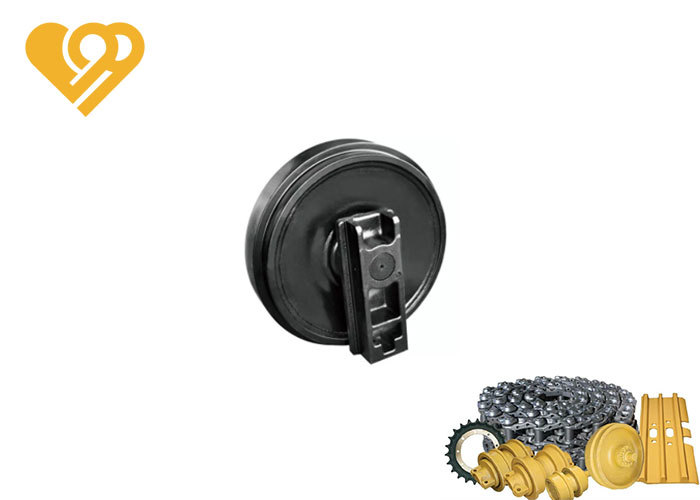

Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth 1 Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth 2
Production Processes
Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth 3
Hot Sale Products
Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth 4 Volve EC360 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heat Treatment Front Idler Assembly with HRC48-58 Hardness and 8-12mm Hardness Depth 5
Our Advantages
  • World-class quality
  • Factory direct sales with competitive pricing
  • 35 years' experience in Excavator & Bulldozer spare parts manufacturing
  • Fast delivery within 30 days after contract established
  • Professional sales team, quality inspection and report, maritime logistics guidance
  • Comprehensive after-sale services including video technical support and 24h online support
Are you still troubled by lacking quality excavator idlers? YinTai Parts is a professional manufacturer of excavator idlers in China with over 30 years of experience. We guarantee high quality and excellent performance of our products.
